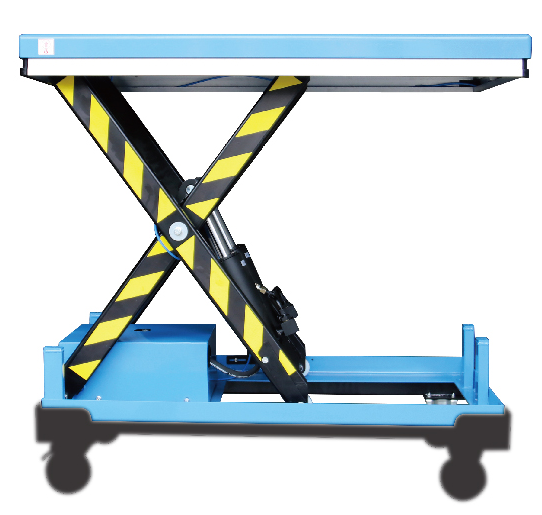

Pneumatic Lift Table PHW series

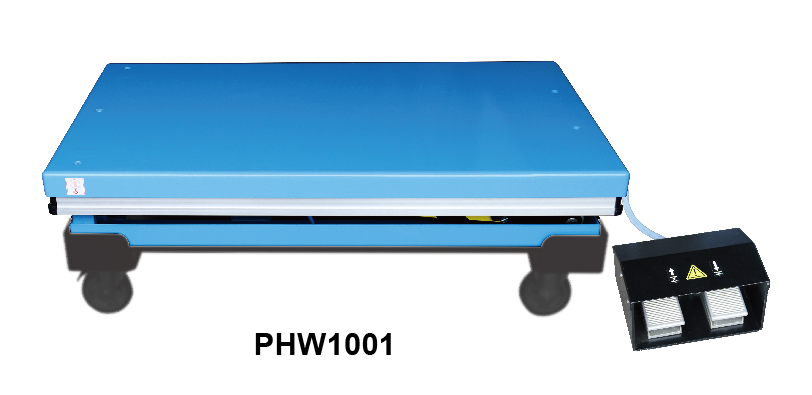

The PHW1001 Pneumatic Lift Table from the PHW series is a heavy-duty lifting solution designed for industrial applications. Powered by compressed air, this air-powered lift table delivers energy-efficient performance, making it ideal for warehouses, manufacturing plants, and assembly lines. With a 1000kg (2200lb) load capacity, it provides safe and reliable vertical lifting for pallets, machinery, and heavy materials.

Panguna nga Mga Dagway

100% Air-Powered Operation – No electricity required, eliminating explosion risks from sparks in hazardous environments like auto repair shops, flour mills, chemical plants, and oil & gas facilities.

Pneumatic Safety Design – Equipped with an internal brass velocity fuse, upper travel limit switch, and hinged maintenance prop for secure, reliable lifting.

Industrial-Grade Construction – Features precision pins & bearings, toe guards, and a two-button hand control for smooth, durable performance.



Technical Specifications

EspesipikasyonMetric (mm/kg)Imperial (in./lb.)
Model NumberPHW1001PHW1001
Kapasidad1000 kg2200 lb
Gidak-on sa Platform1300×820 mm51.2×32.3 in
Maximum Lift Height990 mm39 in
Minimum Lift Height205 mm8.1 in
Kinatibuk-ang Mga Dimensyon1266×680 mm49.8×26.8 in
Lifting Time25±5 seconds25±5 seconds
Pneumatic Motor Power3 Kw3 Kw



Why Choose Our Pneumatic Lift Table?

Explosion-Proof – Safe for ATEX zones, flammable dust areas, and volatile vapor environments where electric lifts are prohibited.

Low Maintenance – No motors or wiring to fail—just connect to compressed air for instant operation.

Versatile Applications – Ideal for automotive garages, food processing plants, grain silos, and industrial workshops.

Precision Control – Two-button hand control allows easy lifting/lowering with adjustable airflow for speed regulation.

FeaturePHW Pneumatic LiftElectric LiftHydraulic Lift
Explosion Risk✅Zero (air-powered)⚠️ High (sparks)⚠️ Moderate (fluid leaks)
Maintenance✅ Minimal (no fluids/motors)❌ High (wiring/motors)❌ Moderate (seals/pumps)
Power SourceCompressed AirElectricityHydraulic Pump
Ideal ForFlour mills, auto shops, chemical plantsWarehouses, factoriesHeavy machinery



If you're interested in standard models, we highly recommend the Electric Mobile Lift Table ug Stationary Lift Table for their proven performance and cost-effectiveness.
